MTC-A2280 Series

SM2259XT2 SATA III 6Gb/s SSDs 128GB~2TB

MTC-A2280 Series

The MTC-A2280 series SATA III 6Gb/s solid-state-drive (SSD) is a performance-optimized, M.2 2280 form-factor, SATA III interface mass storage device. The MTCA-2280 series SSD ideally suited for PC client SSDs, Ultrabook’s, a nd POS, Kiosk, The MTC-A2280 series provides comprehensive data protection and enhances the endurance and retention of TLC, achieving longer durability for embedded system.





Key features

  • Capacities: 128GB~2TB
  • Form Factors: 2.5” SATA SSD
    • 80.00 x 22.00 x 3.58 (mm)
  • Interface:
    • Serial ATA 6.0Gbps
    • Complies with ATA/ATAPI-8
    • Supports NCQ
    • Supports TRIM
  • Operating Voltage Range
    • VCC: 2.35–3.6V
    • VCCQ: 1.14–1.26V
  • Shock
    • 1500G, duration 0.5ms, half sine wave
    • (Applicable only for cased product)
  • Vibration
    • 7~800Hz, 3.08Grms, 30min (Axis X, Y, Z)
    • (Applicable only for cased product)

Form Factor

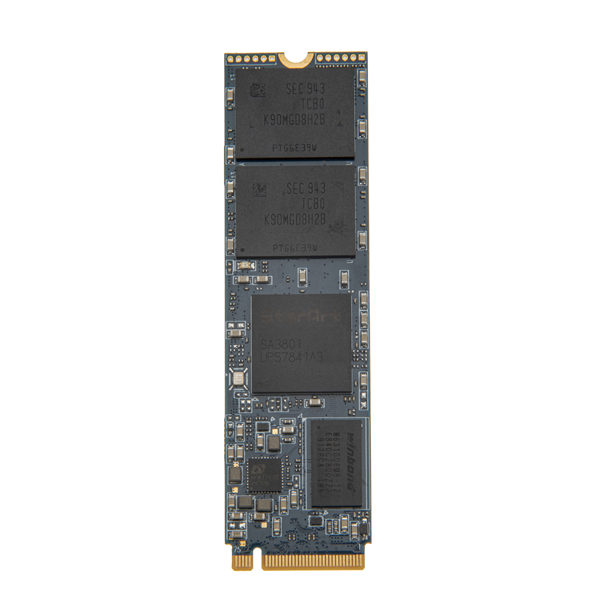

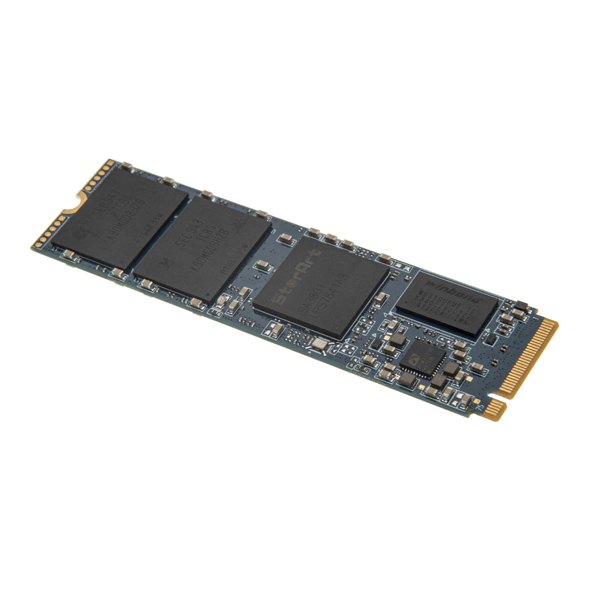

  • M.2 2280 SSD: 80.00 x 22.00 x 3.58 (mm)
