MTC-C380 Series

SA3801 NVMe SSDs - 64GB~512GB

MTC-C380 Series

The MTC-C380-series solid-state-drive (SSD) is a performance-optimized, M.2 form-factor, PCI-Express/NVMe interface mass storage device. The MTC-380-series SSD is compliant with PCI-Express Gen. 3 and NVMe 1.2 protocol. Interfacing host platform with high speed PCIe 8 Gb/s lanes, MTC-C380-delivers high access speed for both READ and WRITE access. The MTC-C380-series utilize advanced, proprietary performance-optimized LDPC ECC technology plus NAND Flash RAID engine to ensure high reliability and protect user data. In addition, the MTC-380-series also features intelligent power management to maintain low overall power consumption while delivering high data throughput and rigorous data protection.





Datasheet下載

商品特色

Key features

  • Capacity
    • 256G B is available
  • Form Factor

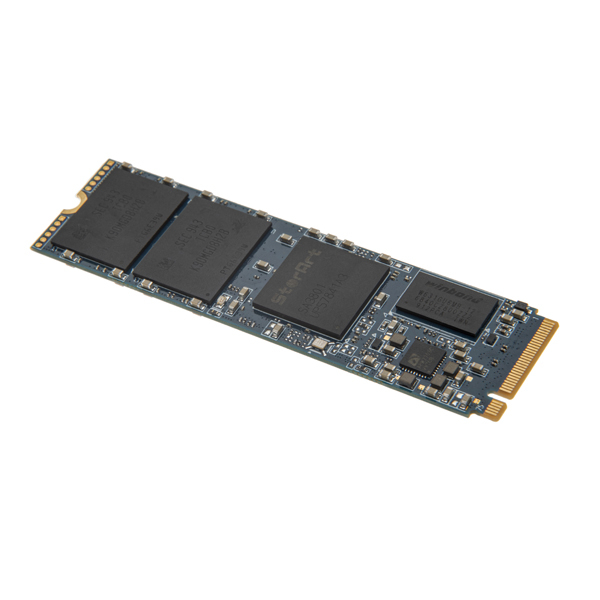

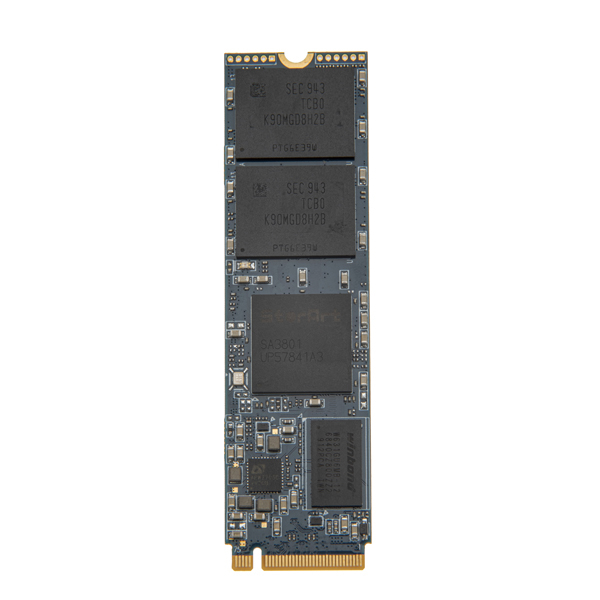

    • M.2 2280

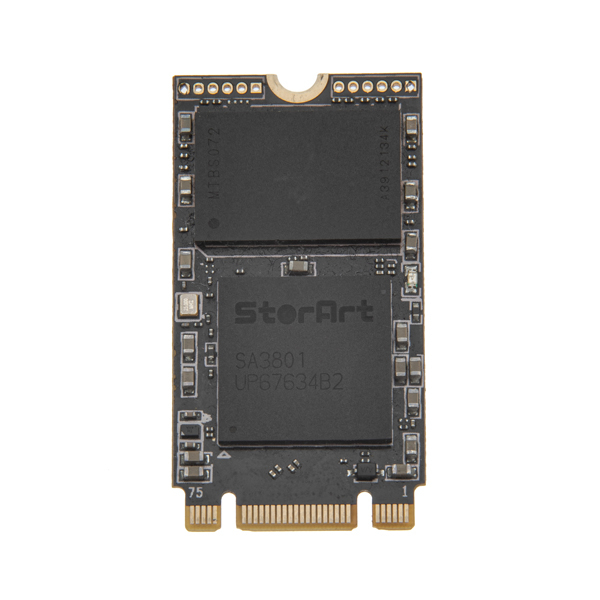

    • M.2 2242
  • Host interface
    • PCIe Gen3 x2 Lanes
    • Complies with NVMe 1.2
    • Supports TRIM
  • MTBF
    • 1,500,000 Hours
  • Power Consumption
    • Active write: 3578mW Max.
    • Active read: 3984mW Max.
  • Temperature
    • Operating : 0°C to 70°C
  • Shock
    • Shock : 1500G, duration 0.5ms, Half Sine Wave
    • Vibration : 7~800Hz, 3.08Grms, 30min/axis(X,Y,Z)
    • * Applicable only for cased product
