MTC-S700 Series

IG5236 NVMe SSDs - 512GB~2TB

MTC-S700 Series

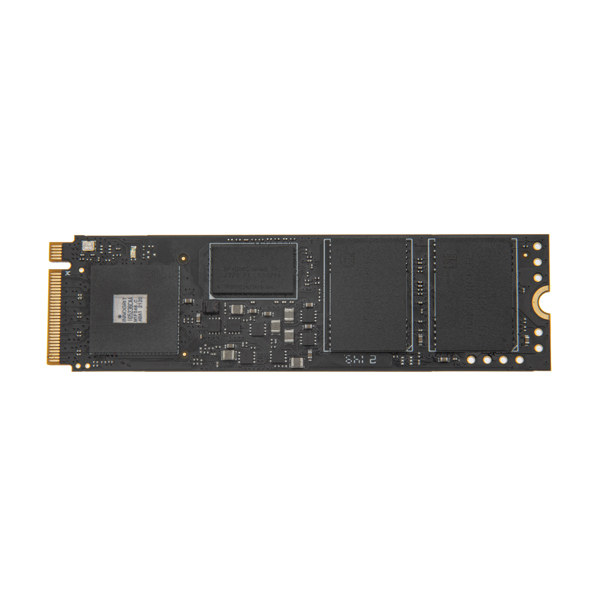

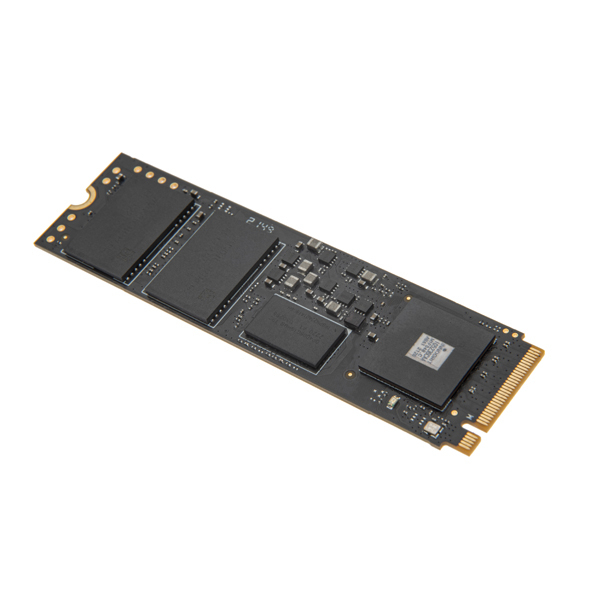

The MTC-S700 Series M.2 PCIe SSD which adopts IG5236 SSD controller is NVM Express SSD, it is designed as the standard M.2 2280 form factor with PCIe interface. It supports PCIe Gen 4x4 and compliant with NVMe 1.4 protocol p roviding excellent performance. With sophisticated error detecti on and correction (LDPC ECC) functions, the MTC-S700 Series M.2 PCIe SSD can ensure full End-to-End data path protection that secures the data transmission between host system and NAND Flash. Additionally, the MTC-S700 Series PCIe SSD with heat spreading design dissipate heat generating from IC making SSD perform more steady. The MTC-S700 Series PCIe SSD delivers ultra high read performance up to 7000MB/s and high IOPS, capable of maximum capacity up to 2 TB, making the SSD not only as PC’s ideal drives for work and pleasure, but also optimal for server and heavy data workload application.





Datasheet下載

商品特色

Key features
  • Capacity: 512GB,1TB,2TB
  • External DRAM Buffer
  • PCI Express Gen4: Single port X4 lanes
  • Compliant with PCI Express Base Specification Rev. 4.0
  • Compliant with NVM Express Specification Rev.1.4
  • Static and Dynamic Wear Leveling and Bad Block Management
  • 4K LDPC + RAID
  • End-to-End data protection
  • YMTC X2-9060 3D TLC NAND type flash built-in
  • Support SMART and TRIM commands
  • Optional: China state key SM 2/3/4
  • Support AES 128/256
  • 100% tested HW and SW
